Path:  >> >> >> >> – Update me on new productsView latest products Switch mode power IC, integrated circuits for AC-DC power supply Shenzhen DongKe Semiconductor Co. Ltd Avg Response Time: 24-48h Description:The DK112 is specially design for low power switch mode control, it is widely use in small household electrical appliancesApplications:Battery chargerDVD/VCD power supplyPower AC/DC adaptersAir conditioner power supplySTB power supplyAC/DC LED driver applicationsElectromagnetic oven power supplyTV/Monitor power supplyMain features:85-265V wide range AC power input65KHz oscillation frequencyDouble chip design with bipolar junction transistor (BJT) to save costLarge scale MOS digital circuit design with E class BJT driving, so that to enhance its high voltage resistance capabilitSelf-power supply design, no need for additional IC to supply the electricityInternal integrated constant high voltage current driving circuit, no need for additional resistanceOver current, over loading, over temperature, over voltage, output short circuit and photo-coupler failure protectionInternal ramp compensation circuit to keep the stability of the circuit in low voltage and high power conditionInternal PMW oscillation circuit with frequency jittering control to keep EMC characteristicsInternal frequency conversionFrequency-down in low load condition

, comply with the Europe standard (stand power<0.3W), also reduce the output voltage rippleRamp current drive circuit included to reduce IC power loss and raise circuit efficiency4KV anti-static ESD testPacking:50/tube2,000/inner carton20,000/master cartonFor more information, please refer to PDF file attached2 ton ac dimensions Experienced StaffGuarantee/WarrantyInternational ApprovalsPackagingPriceProduct FeaturesProduct PerformancePrompt DeliveryQuality ApprovalsReputationServiceSmall Orders Acceptedair conditioner and heater wall mounted Eastern EuropeNorth AmericaMid East/AfricaCentral/South AmericaAsiaWestern EuropeAustralasiacost of a new ac compressor Download more information about this productAny third-party trademarks or images shown here are for reference purposes only.

We are not authorized to sell any items bearing such trademarks. 4th Floor, Building A, Fuying 2nd Fuyong Town, Bao'an DistrictShenzhenGuangdongChina (mainland) 518030 Verified Business Registration Details Business Registration Number: 440306105372062 Company Registration Address: 深圳市宝安区福永街道和平和景工业区第18幢第一层A、第二层 * In some jurisdictions, company names and addresses are registered in Chinese only. AsiaWorld-Expo, Hong Kong SAR Booth number: 11K15Register to attendMake an appointment This supplier has also exhibited at the following shows: Global Sources Electronic Components Show Held in: Hong Kong - April 2016 Global Sources Electronic Components show Held in: Hong Kong SAR - October 2015 Held in: Hong Kong SAR - April 2015 Global Sources Mobile Electronics Fair Held in: Hong Kong SAR - October 2014 Self-powered power management IC Patented self-powered power management IC

Related products from this supplier See more related products Product Categories from this supplier AC/DC switching adapters - 10 productsChargers for iPhone - 4 productsController ICs - 6 productsIsolated DC-DC converters - 2 productsLED drivers - 5 productsLED power supplies - 1 productMobile phone chargers - 36 productsOpen frame power supplies - 13 products PCB mount power supplies - 1 product Power-management ICs - 128 products Rectifiers - 3 products Semiconductor materials - 1 product Standard battery chargers - 5 products Switching power supplies - 11 products USB 2.0 mobile phone chargers - 2 products Optical Power Meter Suppliers Led Driver Ic Suppliers China Optical Power Meter China Led Driver Ic China Led Drivers Ic Optical Power Meter Wholesalers Dc Power Regulator Wholesalers Dc Switching Regulators WholesalersWhen you build , electronic project , that have to use , power supply regulated source.

I thinks you might something the circuit that has the height and economize with.I begs for to advise this circuit , because use voltage regulator Ic 78XX series series. By you can change Voltage get follow want,– 5V = IC 7805 (5v voltage regulator), – 6V = IC-7806 – 8V = IC-7808 , – 9V = IC-7809 , – 10V = IC-7810 , – 12V = IC-7812 such as. By still use PCB and other equipment as before. To use transformer 1-2A. IC-78xx to Hold Heatsink.For example circuit that use IC-78xx series in fixed voltage supply for digital circuitsI am built this dc regular circuit, is the first project. Because at that interesting about digital circuits, need a constant 5V 1A fixed power supply. Using IC-7805 is very suitable for this job. Because it is easy to use, easy to buy, as popular applications, and it is also cheap. For working principle, I would permitted to tell simply. When the home electric source ACV, 110V or 230V or a 220V, depending on your country, through the transformer, the voltage remains 9VAC.

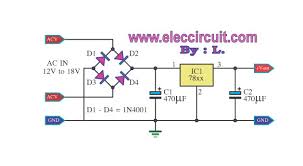

Then through the diode for rectifier power supply to the DCVolt, And a filter circuit with Capacitors. This is a voltage is about 12Vdc. It does not work through IC-7805, before our hero, for to control a stable 5V voltage with can prevent also a short circuit. Just now I have a small circuit great ready to use it. The PCB layout of Power Supply 5V 1A by IC 7805 and The all components layout. The main parts of this circuit is IC 7806,It is normal IC linear dc voltage regulator 6V at 1A current. It is easy project electronic because used the minority part and low cost too. I have of a 9Vac 1A transformer,The output of the transformer is rectified by diode 1N4001 or equivalent to more high power, Thence to smoothed filter using 470uF 35V capacitors,so the volt this is unregulated DC voltage have value 11V-12V DC. Besides must use this ic with a suitable heatsink. Detail more,Please in image circuit.           Eleccircuit highly recommends EasyEDA for PCB design and orderAC-DC Converter Chips Information

Show all AC-DC Converter Chips Manufacturers AC DC converter chips adjust AC input into DC output. These chips have a specific integrated circuit (IC) package type. How AC DC Converter Chips Work AC DC converter chips rectify AC input into DC output. They also adjust the voltage level through a regulator and smooth the pulsating DC through a capacitor. This video explains AC to DC conversion. Video Credit: Jeffrey Regester / CC BY 3.0 Types of AC DC Conversion Chips Linear AC DC converters are inexpensive and simple. A disadvantage of the device is they are inefficient since they siphon off excess power as heat. SMPS (switch/switched/switching-mode power supply) shift very quickly between full-on and full-off states via a switching regulator (using transistors such as BJTs, MOSFETs, or IGBTs). This minimizes wasted energy. They are also smaller and lighter. However, switching converters can cause electrical noise problems and may have a poor power factor.

Important specifications when selecting AC DC converter chips include, AC input range (e.g., 85-264 VAC) or are set (e.g., 115, 208, or 230 VAC only). Output of DC can be specified with respect to watts (e.g., 3 to 1,000), volts (e.g., 3 to 380), and amps (positive or negative; 1.6 to 6,000). Operating temperature allowances are bracketed (e.g., -20 to 70 C). AC DC converter chips feature several main characteristics such as, Converter chips can have one or more outputs. Protection add-ons include overcurrent, overvoltage, or short circuit. Power factor correction is available to counteract distortion and raise the power factor. These chips may be switched on/off remotely. The device containing the converter chip can be ruggedized. Converter chips are found in cell phone chargers, computers, and other electronic consumer devices. They are also used for industrial machinery, as well as medical, military, and telecommunications equipment.
